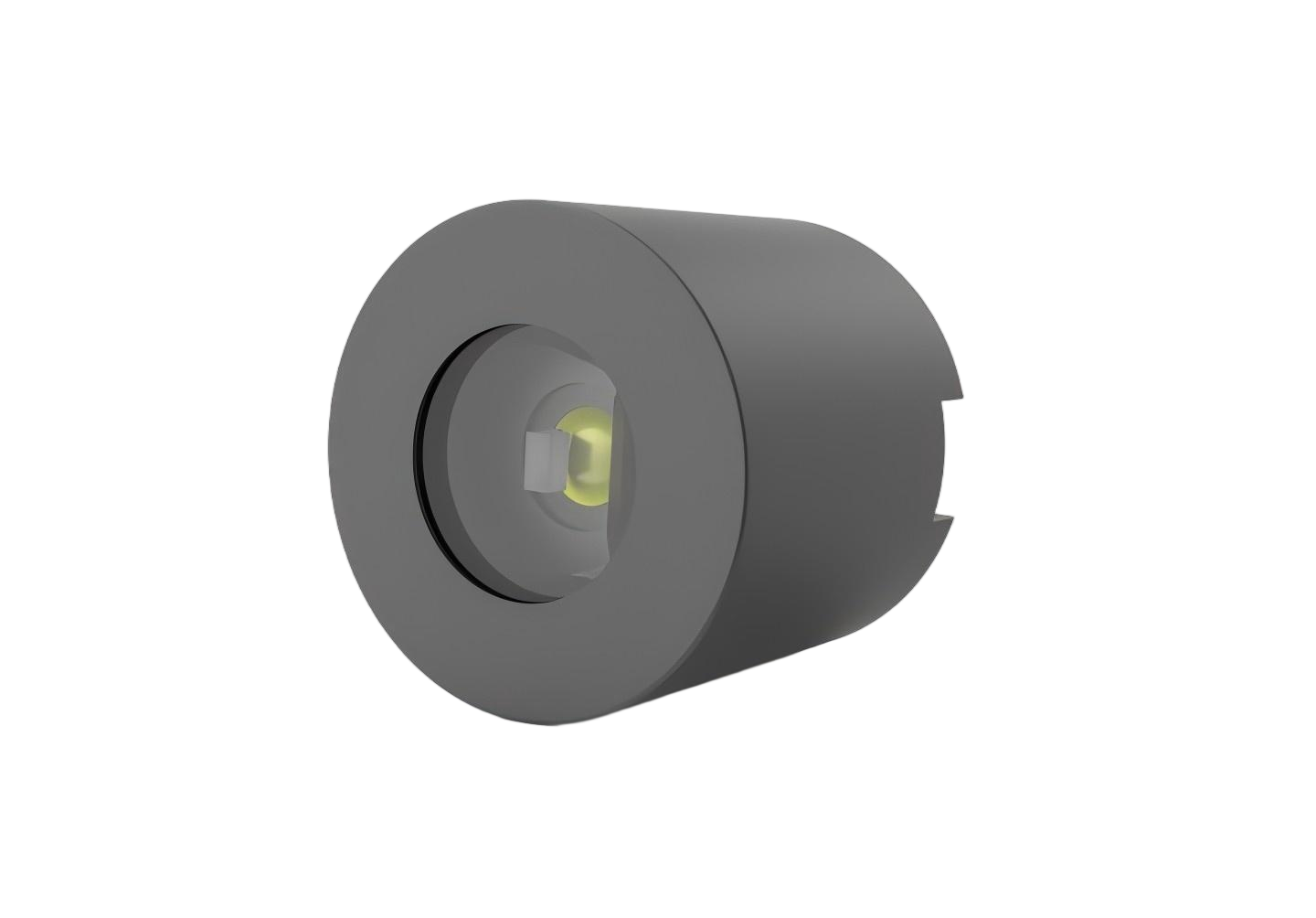

RX45 Specifications

Highly optimized for general use.

High safety class.

Key Data:

Driving Current: 0.5A(min)-2.5A(typical)-2.5A(max)

Driving Voltage: 4.0V(min)-4.4V(typical)-4.8V(max)

Luminous Flux: ≥450Lumen

Luminous Point Brightness: ≥680cd/mm²

Color Temperature: 6000K-9000K

Luminous Angle: 68°

Lifespan: 10,000Hours

Optical Features:

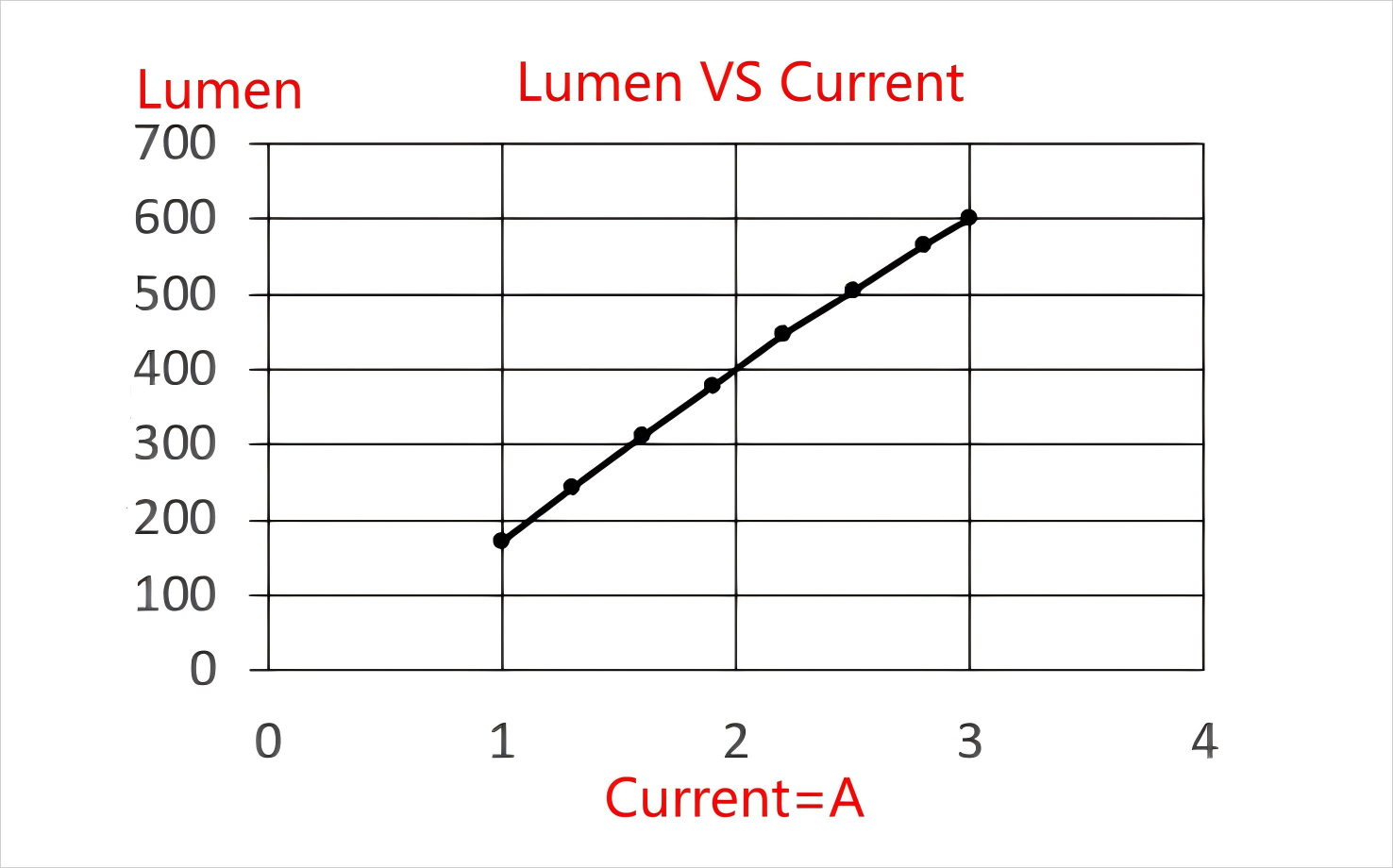

  • Lumen VS Current

  • Normalized Spectrum

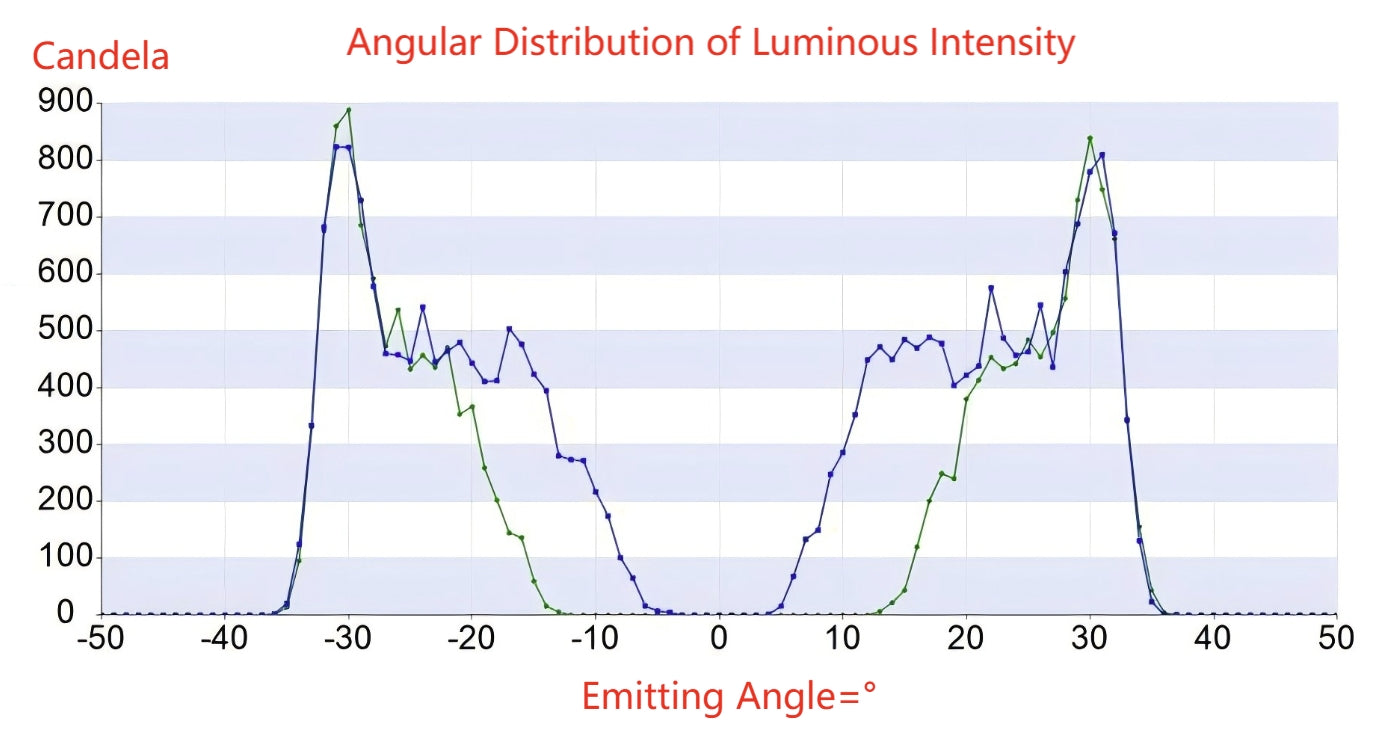

  • Angular Distribution

Dimension: 26.80mm*25.72mm

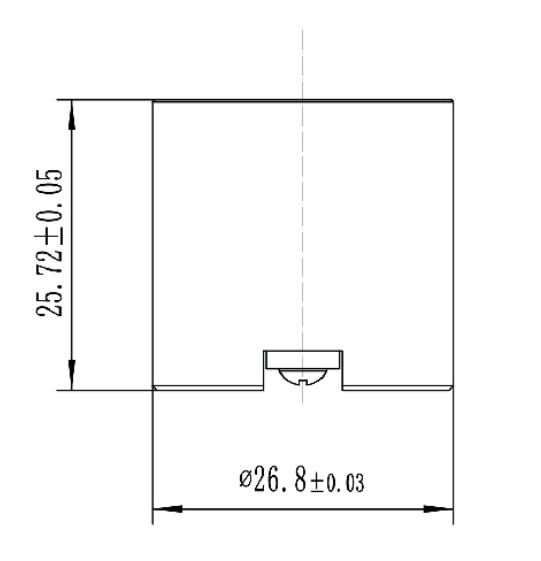

  • Side View

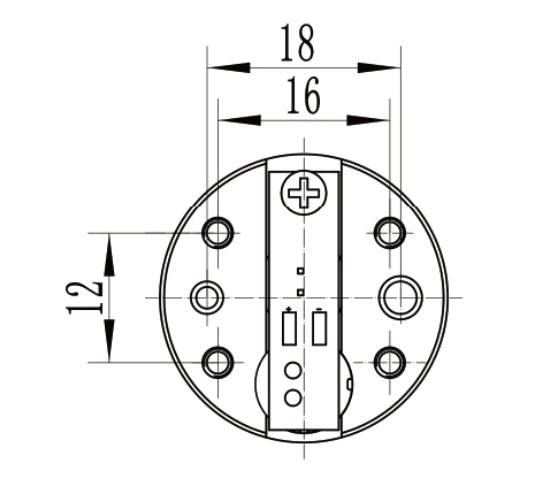

  • Bottom View

  • 27mm Lens Assembling

Heat Dissipation Requirement:

1.The heat dissipation system only needs to work on the heat dissipation surface. The temperature of the heat dissipation surface can NOT be be higher than 60℃.

2.The heat sink must be fully contacted by the thread to ensure that the heat of the light source can be quickly conducted to the heat sink.

3.If necessary, please use extra fans to cool beside heat sink, to make sure the temperature won’t rise.

4.Heat=Electrical power * heat energy rate=Electrical power * 70%.
