YLX26AB Specifications

High brightness.

The highest lumen below 30W LEP module.

Key Data:

Driving Current: 0.6A(min)-2.3A(typical)-2.5A(max)

Driving Voltage: 7.4V(min)-10.0V(typical)-10.4V(max)

Luminous Flux: ≥1000Lumen

Luminous Point Brightness: ≥850cd/mm²

Color Temperature: 5700K-8000K

Luminous Angle: 70°

Lifespan: 10,000Hours

Optical Features:

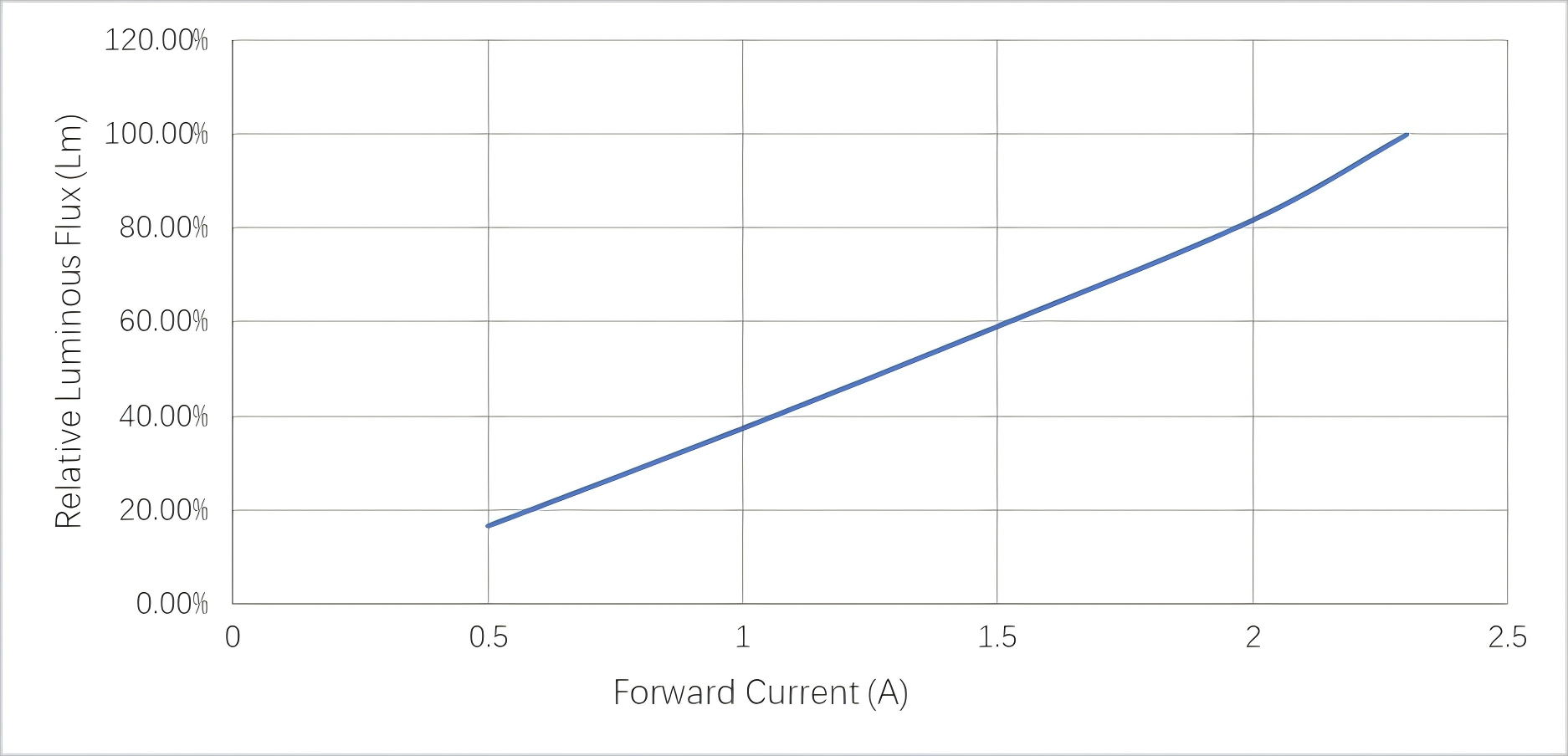

  • Lumen VS Current

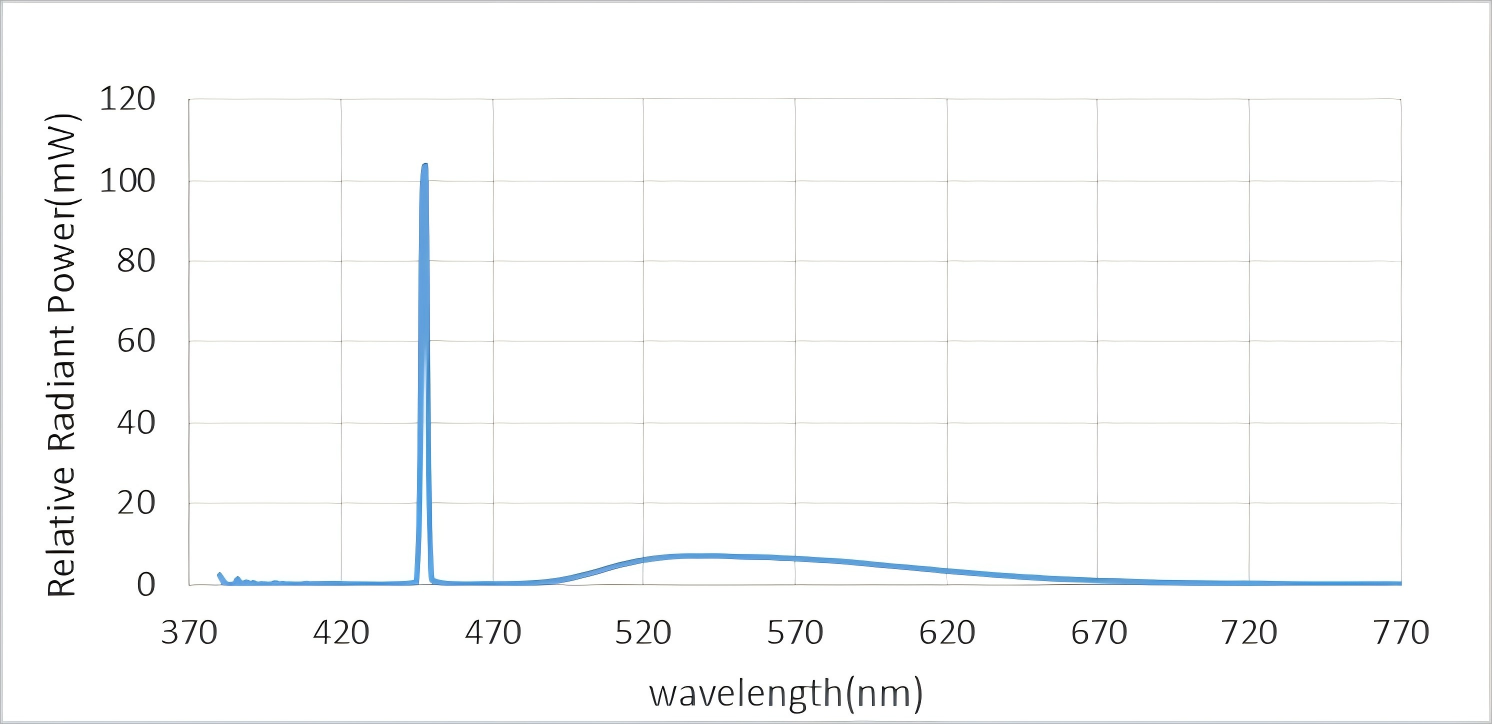

  • Normalized Spectrum

Dimension: 25.35mm*27.00mm

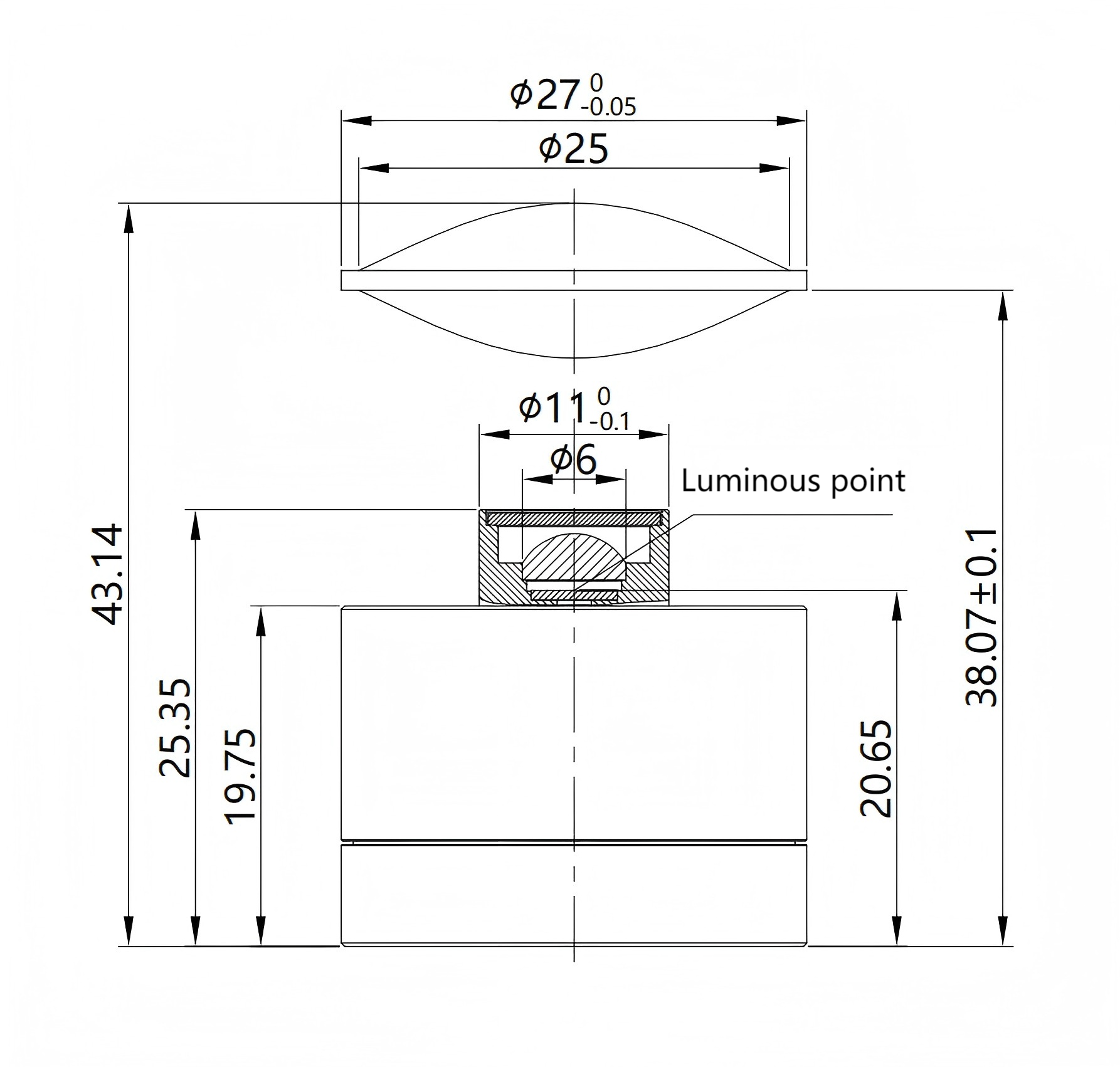

  • Side View

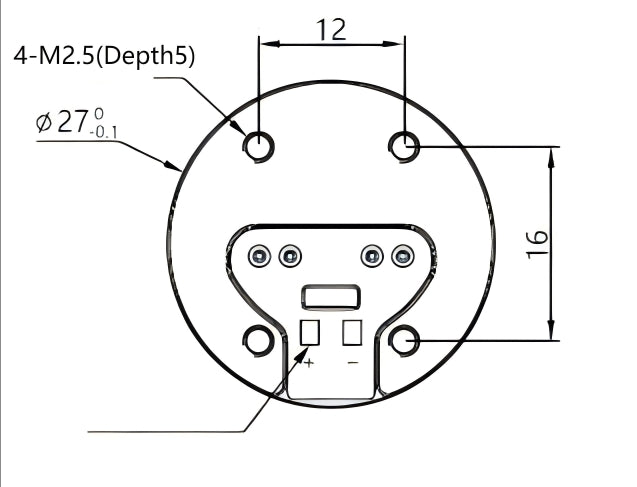

  • Bottom View

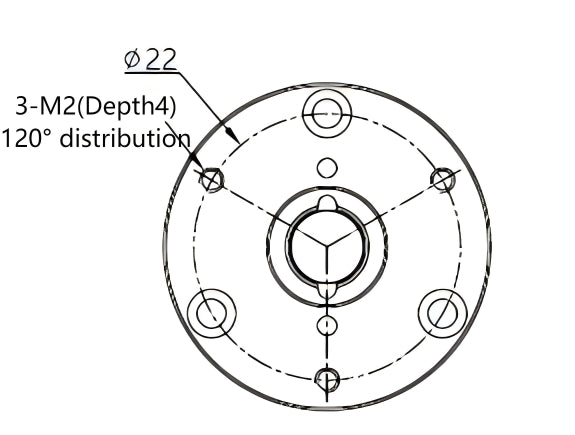

  • Overhead View

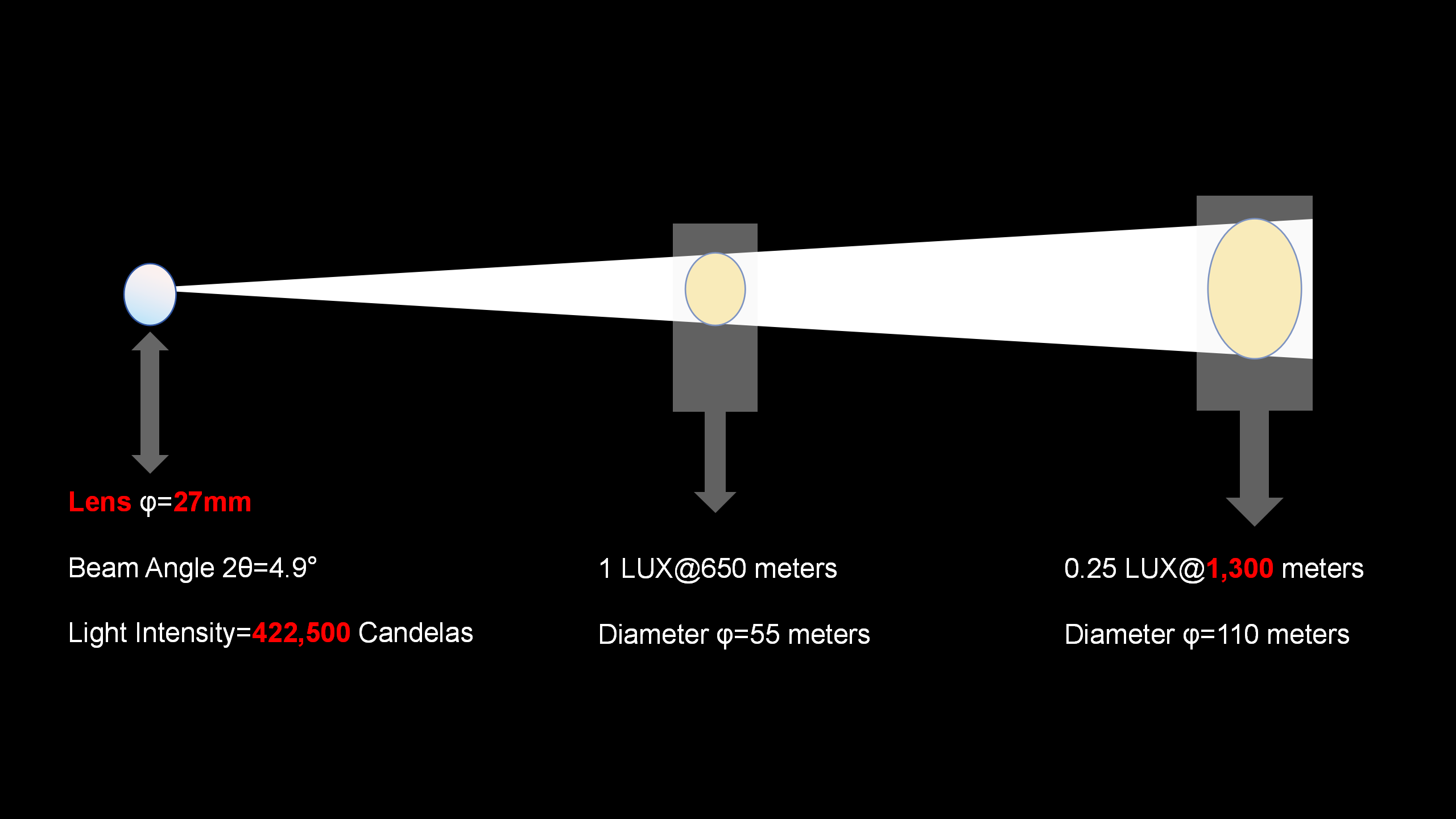

  • 27mm Lens assembling

    STP file available
