White Laser Lighting

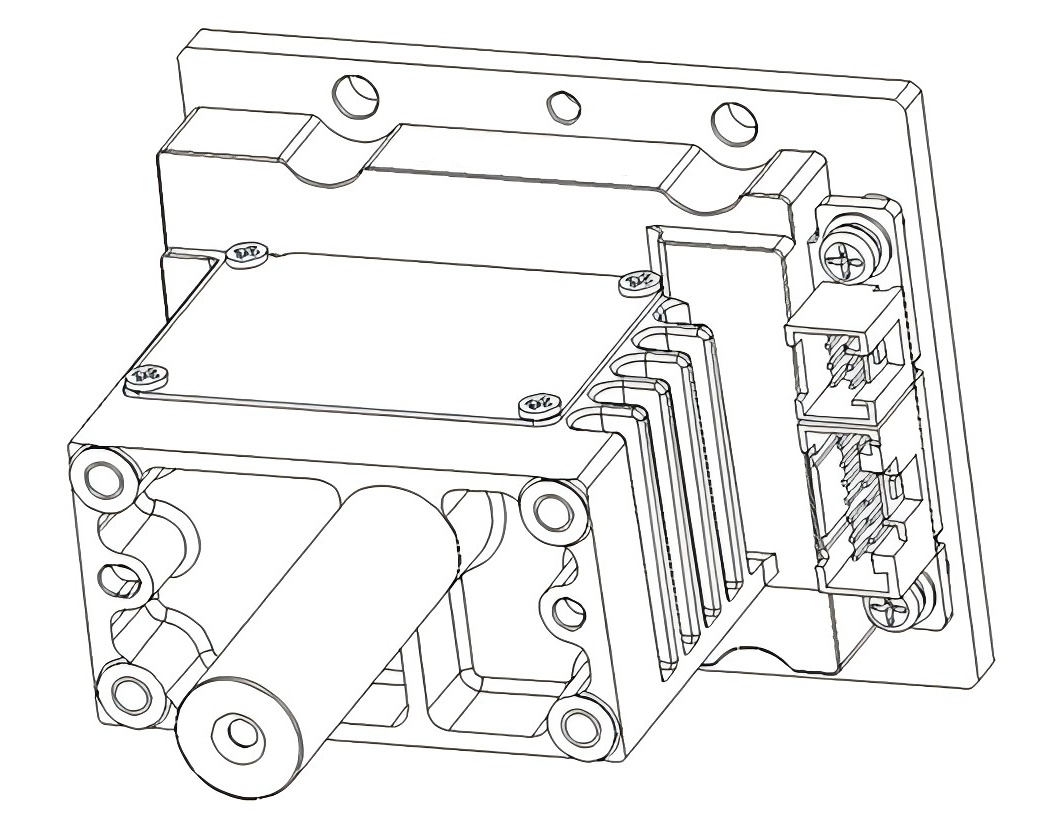

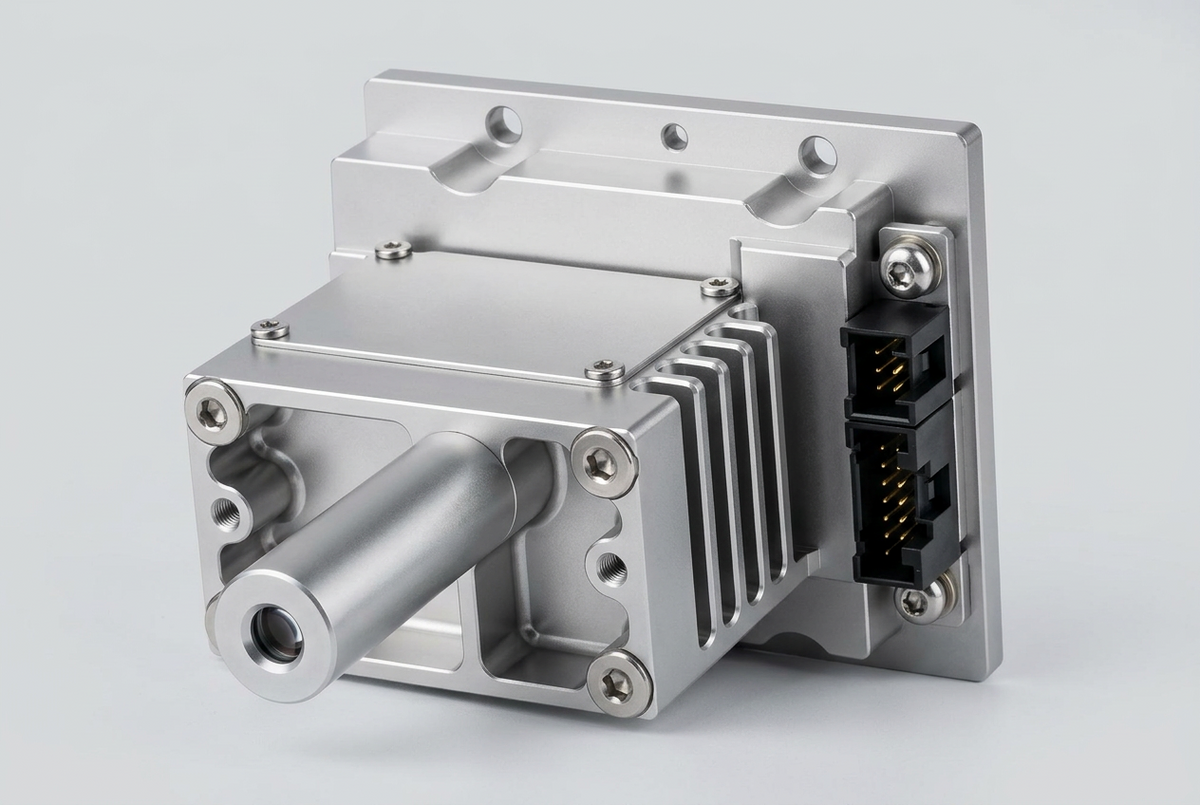

RGB-YX100
RGB-YX100
Regular price
$1,300.00
Regular price
$660.00
Sale price
$1,300.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Operating Conditions:
|
Item |
Symbol |
Red |
Green |
Blue |
Unit |
|
Recommended Drive Current |
IF |
3.2 |
2.4 |
3.0 |
A |
|
Surge current (t ≤ 10μs; D=0.005; Ts = 25℃) |
IFS |
3.7 |
2.9 |
3.5 |
A |
|
Recommended Operating Temperature Range |
Tm |
25~35 |
-- |
-- |
°C |
|
Absolute Maximum Operating Temperature Range |
Tm |
Table. 1 |
0~60 |
0~60 |
°C |
|
Storage Temperature Range |
Tstg |
-40~85 |
°C |
||
|
Median Lifetime (L50) |
Life |
12,000 |
Hours |
||
Optical Specification
|
Item |
Symbol |
Red |
Green |
Blue |
Unit |
||
|
Forward Current |
typ |
IF |
3.2 |
2.4 |
3.0 |
A |
|
|
Dominant Wavelength |
typ |
λd |
643 |
525 |
465 |
nm |
|
|
min |
635 |
519 |
458 |
nm |
|||
|
max |
651 |
531 |
472 |
nm |
|||
|
Optical Output Power |
typ |
PO |
8.9 |
5.9 |
8.2 |
W |
|
|
Chromaticity Coordinates |
typ |
x |
0.7161 |
0.1425 |
0.1368 |
|
|
|
typ |
y |
0.2759 |
0.8005 |
0.0401 |
|
||
|
NTC/°C |
|
min |
|
30°C |
6 KΩ |
6 KΩ |
|
|
max |
|
30.5°C |
8 KΩ |
8 KΩ |
|
||
