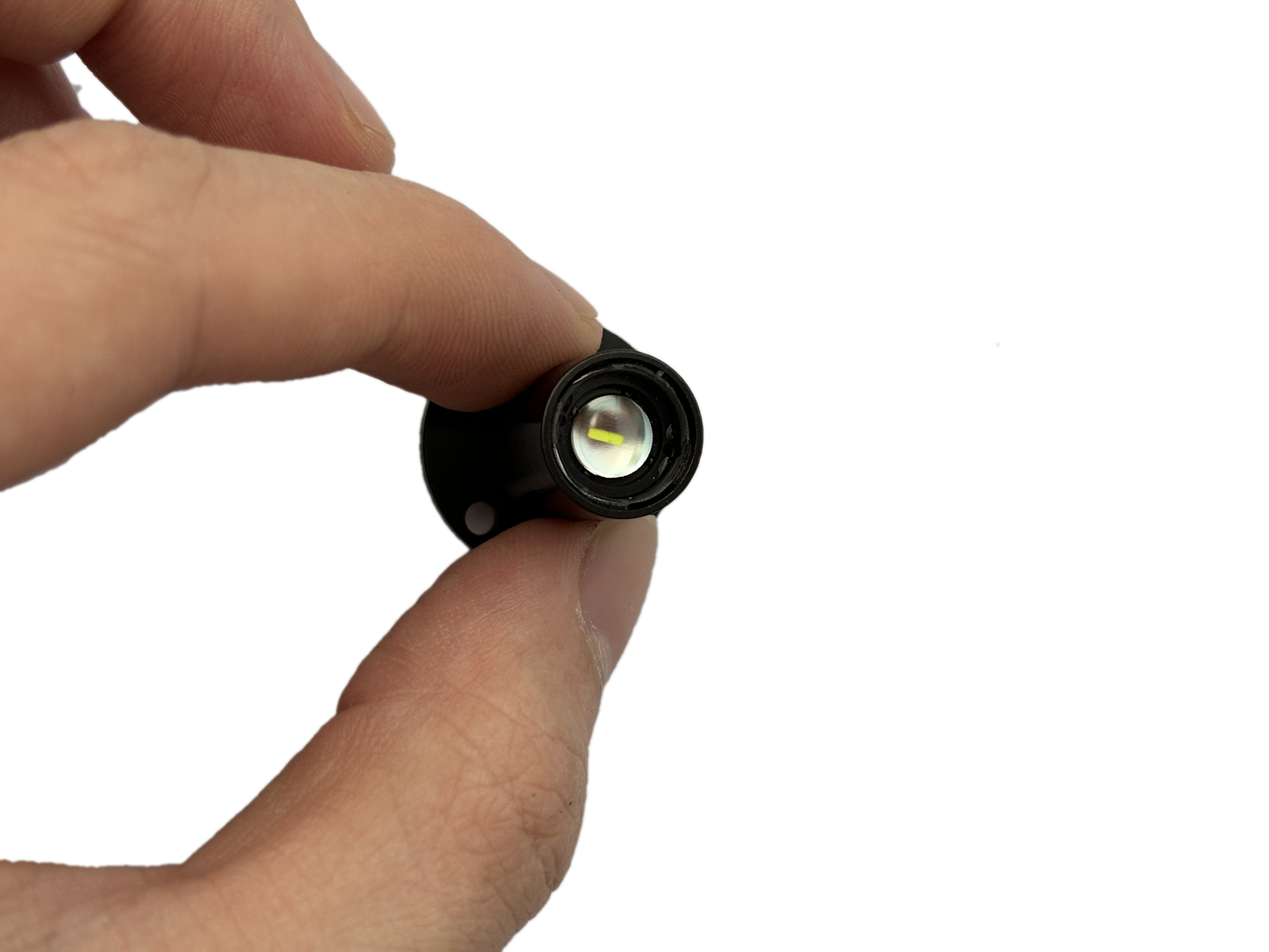

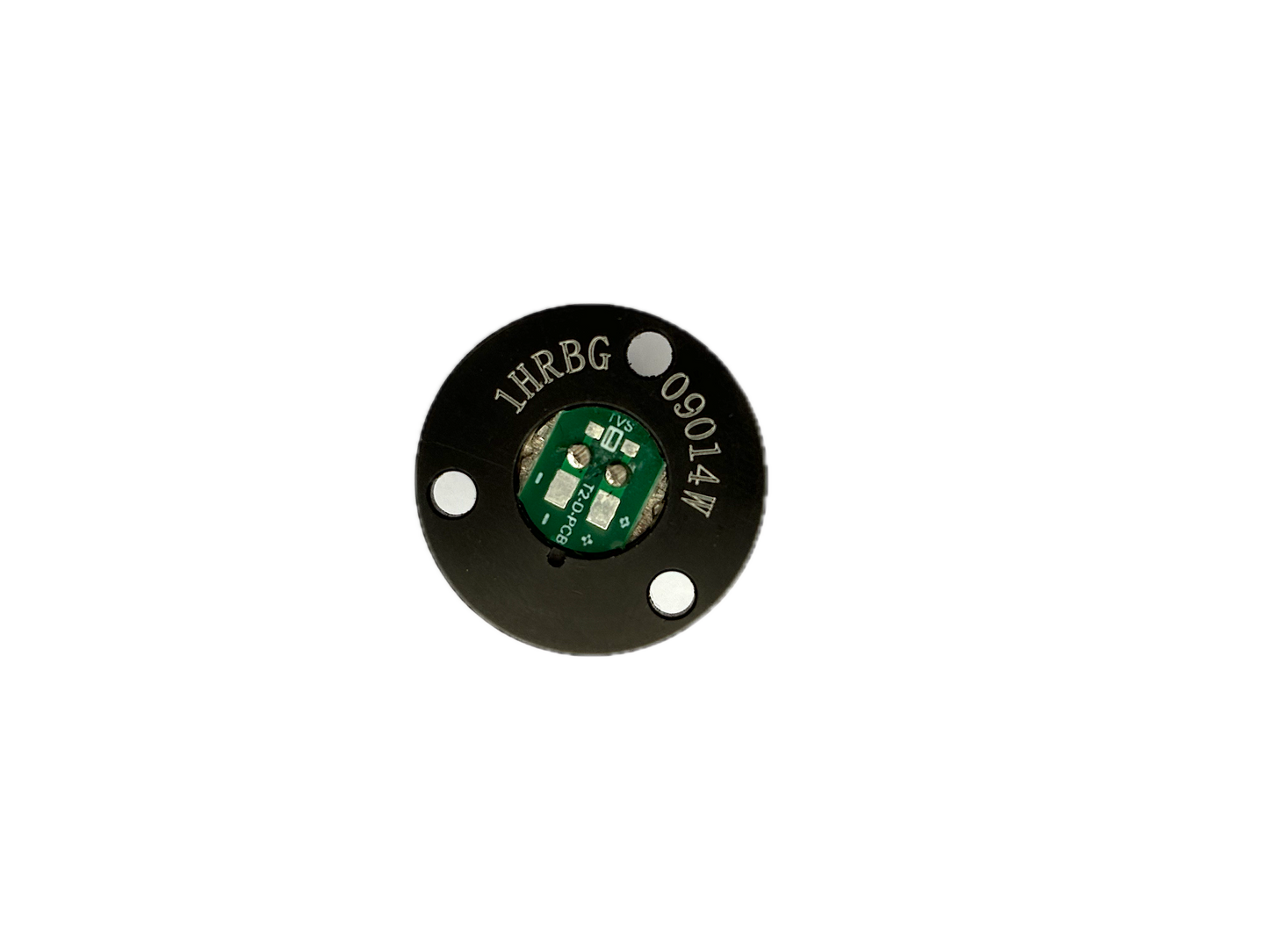

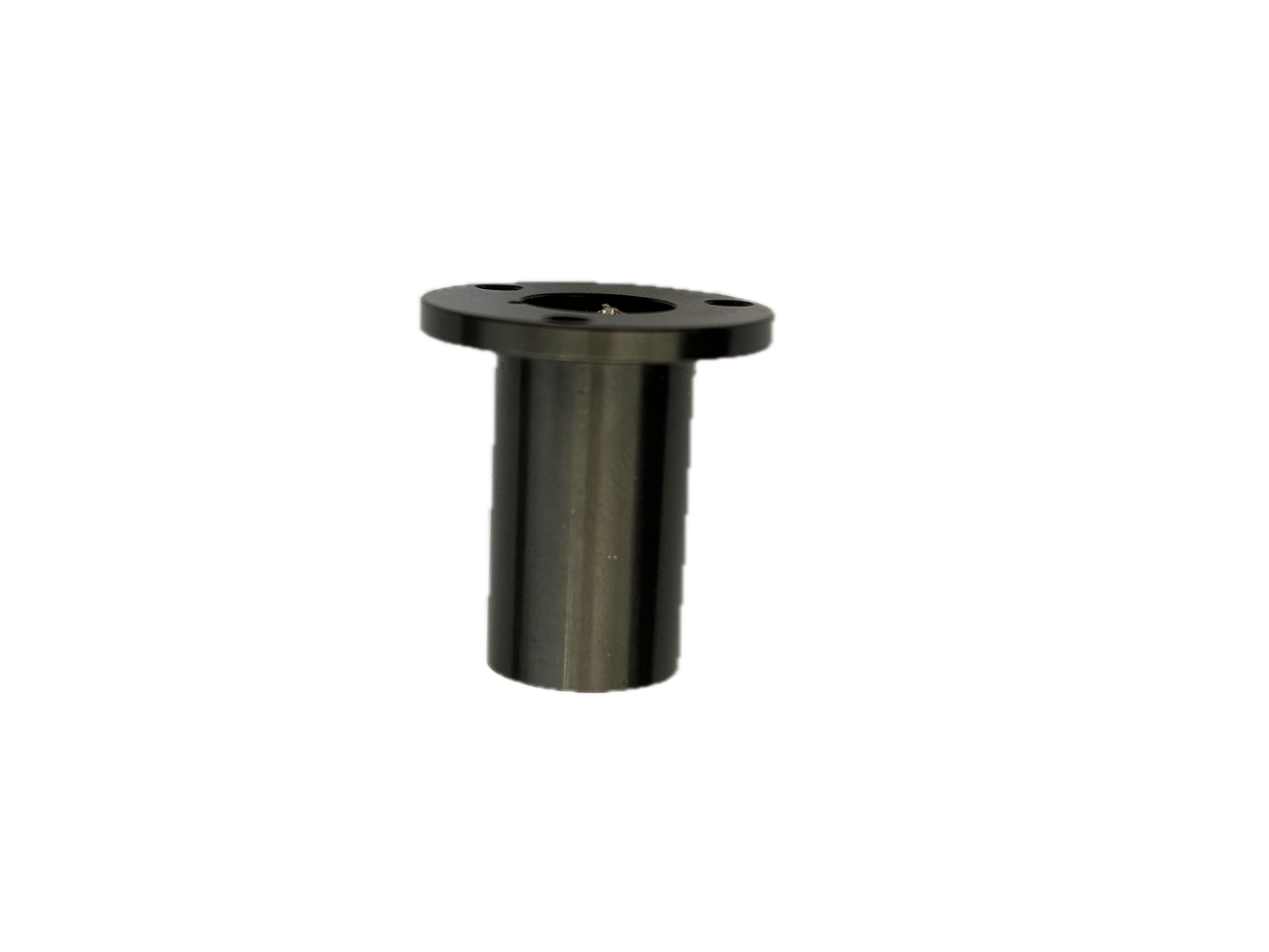

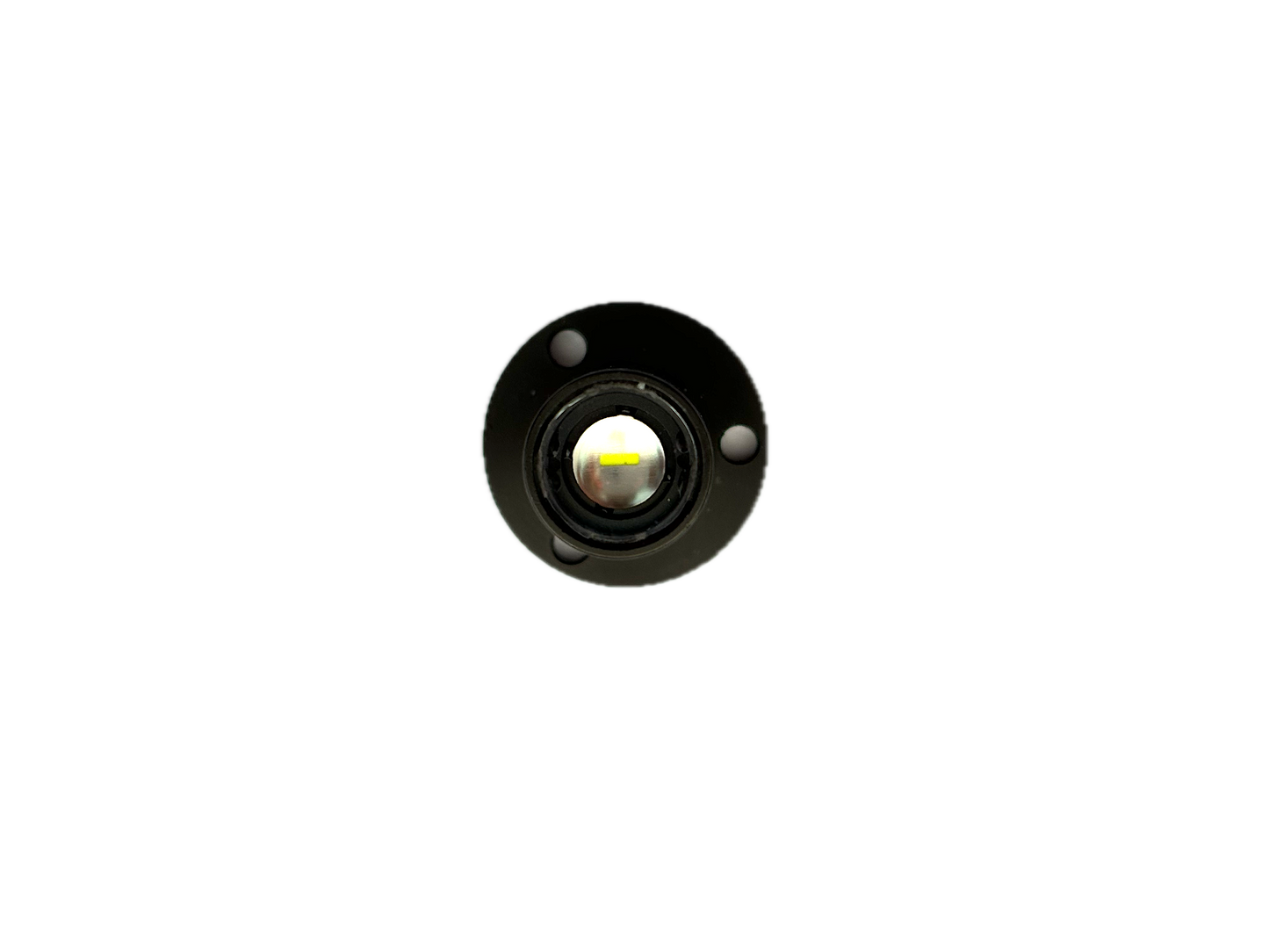

14.4W Rectangle-beam LEP Module

Important Notice:

We need 3-5 working days to send out the demo kit to our logistic partner because every kit is custom-made.

1-LEP Module Product Specifications:

11W=2.5A*4.4V

570 Lumens@2.5A

1,000 Candela/mm²

CT=6000K-9000K

Beam half angle=X34ºY38º

Lifespan=20,000

2-Optical Performance:

⌀ 27 mm:[260,000Candela][0.25Lux@1,020meters]

⌀ 38 mm:[539,201Candela][0.25Lux@1,469meters]

⌀ 55 mm:[1,124,999Candela][0.25Lux@2,121meters]

3-Demo Kit Includes:

(1)An LEP module; (2)A heat sink; (3)PCB driver; (4)Power adapter; (5)On-off switch connector.

4-Extra Files for product development support:

(1)Optics-Technical Specifications;

(2)STP file of LEP module and lenses;

(3)Ray file;

(4)Lens assembling drawings.
